项目演示
观看电磁弹射卫星母舰组网系统的完整技术演示和工作原理说明。
Project Demo
Watch the complete technical demonstration and operational overview of the electromagnetic satellite swarm network system.
Electromagnetic Satellite Swarm Network System
A comprehensive technical solution for ground-based electromagnetic launch systems, in-orbit satellite docking, and encrypted swarm communication networks.
Full Proposal
Continuously updated. Please contact the team for the latest version
地面电磁弹射系统
该系统采用约30米高的电磁弹射塔作为"零级助推器"，为50kg级运载器提供初始动能，从而降低第一级火箭的燃料需求。
发射塔高度
约30米，采用直线感应电机（LIM）驱动，支持垂直或倾斜轨道设计。
运载器重量
50kg总质量（含卫星载荷），采用碳纤维复合材料实现轻量化。
弹射加速度
约10g-20g，在30米内加速至70-100m/s。
能量来源
超级电容器或飞轮储能系统，支持高频次发射操作。
Ground-Based Electromagnetic Launch System
The system utilizes a 30-meter electromagnetic launch tower as a "zero-stage booster," providing initial kinetic energy to 50kg-class launch vehicles, thereby reducing fuel requirements for the first stage.
Launch Tower Height
Approximately 30 meters with vertical or inclined trajectory design using linear induction motors (LIM).
Vehicle Weight
50 kg total mass including satellite payload, utilizing carbon fiber composite materials for weight optimization.
Launch Acceleration
Approximately 10g–20g, accelerating the vehicle to 70–100 m/s within the 30-meter tower.
Energy Source
Supercapacitor or flywheel energy storage systems enabling high-frequency launch operations.
空间交会对接技术
多枚卫星通过电磁捕获和机械锁合机制实现在轨对接，形成功能强大的模块化母舰系统，支持动态硬件重构。
软对接阶段
电磁铁产生的受控磁场在数米范围内引导并初步捕获目标卫星，最小化碰撞风险。
硬对接阶段
通过"探针-锥靶"或"笔帽式"等机械结构实现物理锁合，确保结构刚性并支持电气和数据接口互联。
母舰重构
后续卫星可根据任务需求在母舰指定接口处进行对接，实现硬件升级和功能扩展。

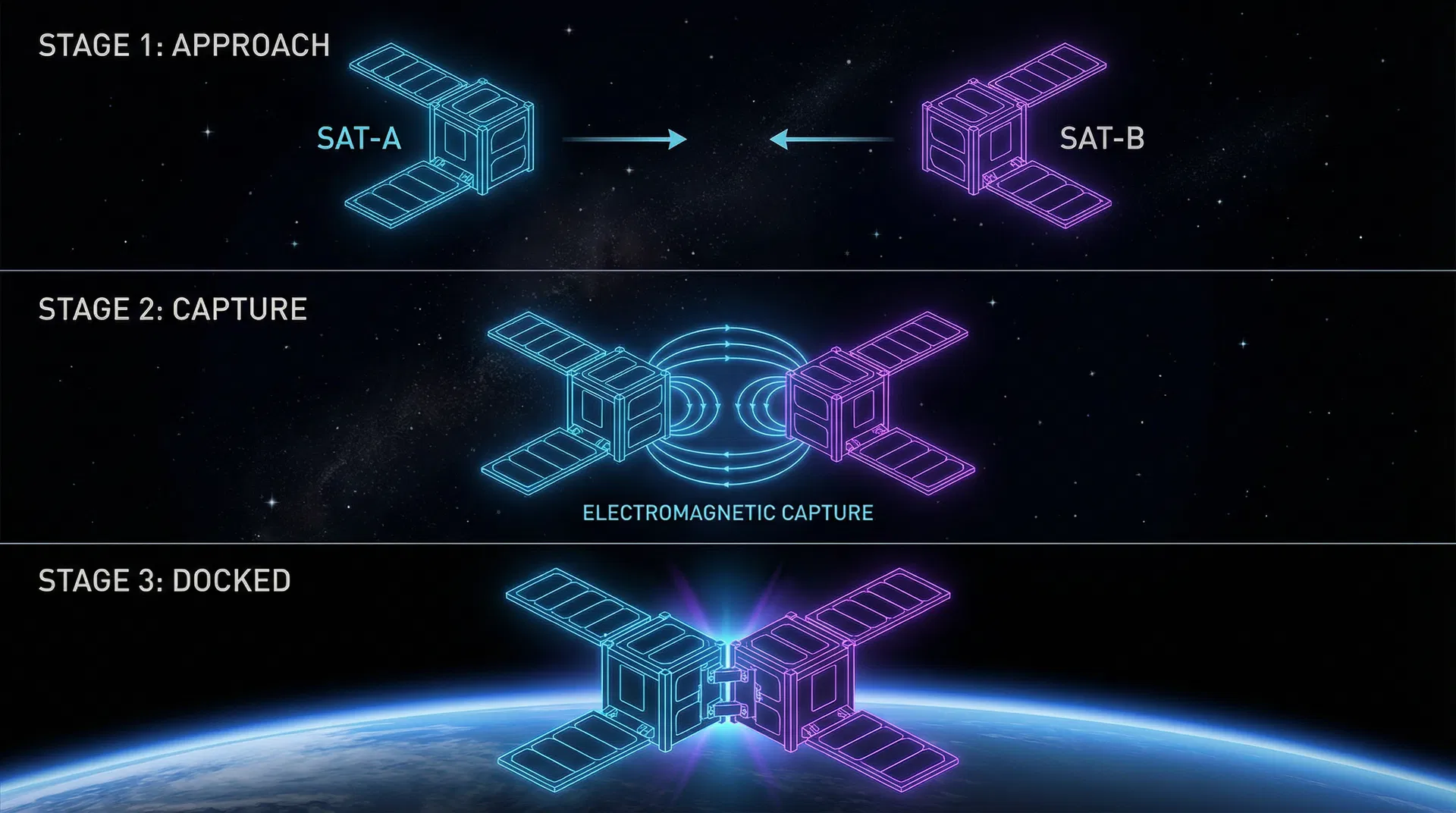

In-Orbit Satellite Docking Technology
Multiple satellites achieve in-orbit docking through electromagnetic capture and mechanical latching mechanisms, forming a modular mother-ship system capable of dynamic hardware reconfiguration.
Soft Docking Phase
Electromagnets generate controlled magnetic fields to guide and initially capture target satellites within a range of several meters, minimizing collision risk.
Hard Docking Phase
Mechanical structures such as probe-drogue or cap-based latches achieve physical lock, ensuring structural rigidity and enabling electrical and data interface interconnection.
Mother-Ship Reconfiguration
Subsequent satellites can dock at designated mother-ship interfaces according to mission requirements, enabling hardware upgrades and functional expansion in orbit.
卫星母舰组网
该系统由核心母星和多个功能子星组成，形成能够自主协调和在轨硬件重构的动态网络。
动态组织
子星可根据任务需求动态加入或离开母舰。
高精度导航
差分GNSS结合视觉导航系统确保精确的对接程序。
协同避障
协作控制算法计算最优对接轨迹，防止物理碰撞。

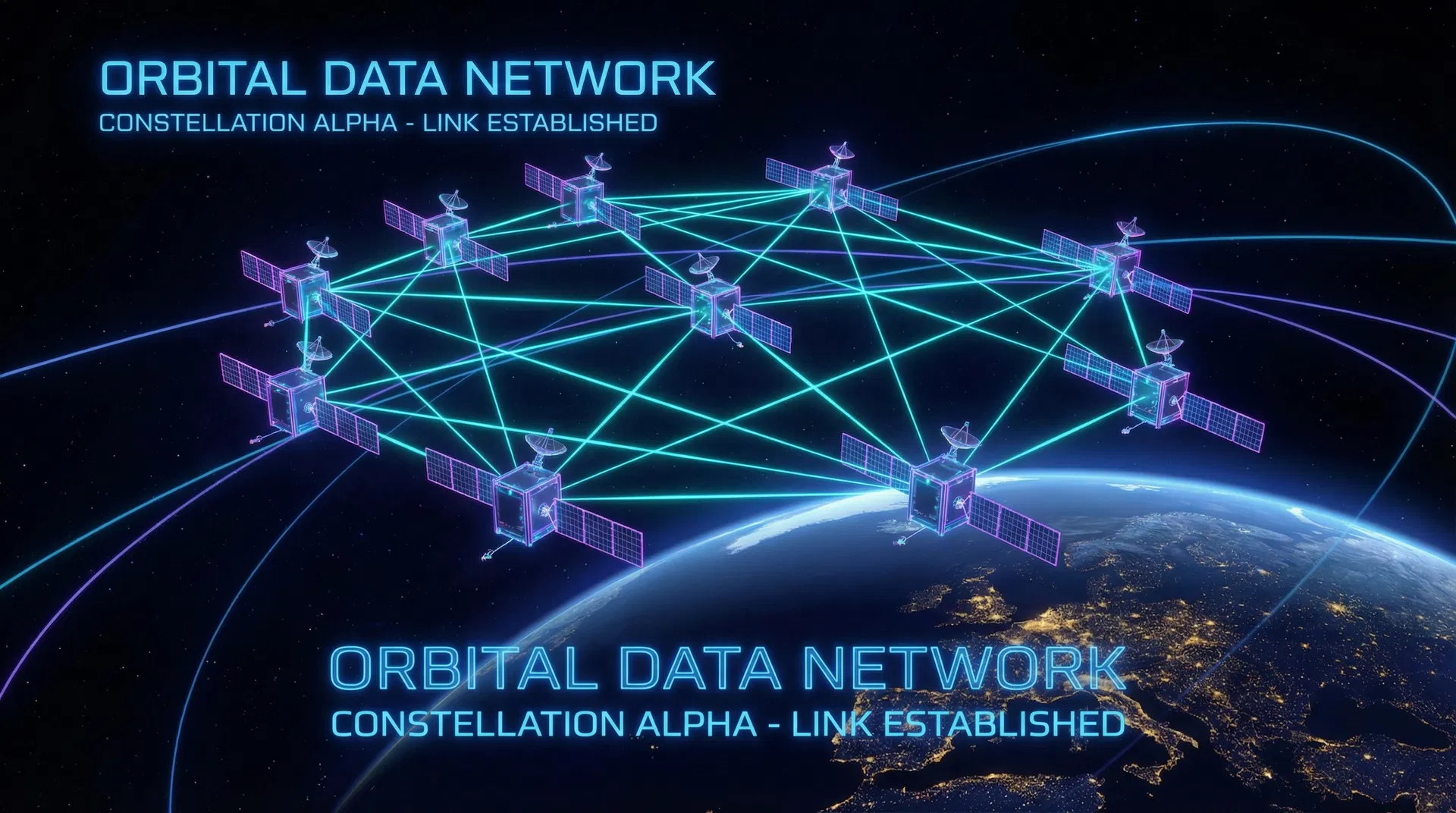

Satellite Mother-Ship Constellation
The system comprises a core mother satellite and multiple functional sub-satellites, forming a dynamic network capable of autonomous coordination and in-orbit hardware reconfiguration.
Dynamic Organization
Sub-satellites can join or leave the mother-ship according to mission requirements.
Precision Navigation
Differential GNSS combined with visual navigation ensures accurate docking procedures.
Collision Avoidance
Cooperative control algorithms compute optimal docking trajectories to prevent physical collisions.
加密通信与协同控制
基于动态组密钥分发和跳频技术的高安全性通信链路，确保坐标和指令的隐蔽传输。
动态组密钥分发
基于椭圆曲线加密（ECC）的协议，在卫星加入或离开网络时自动更新密钥，保持密码完整性。
跳频扩频技术
星间链路采用跳频通信增强抗干扰能力，防止坐标和指令传输过程中的信号截获。
量子密钥分发（可选）
可集成QKD技术，为超敏感任务关键通信提供信息论安全性。

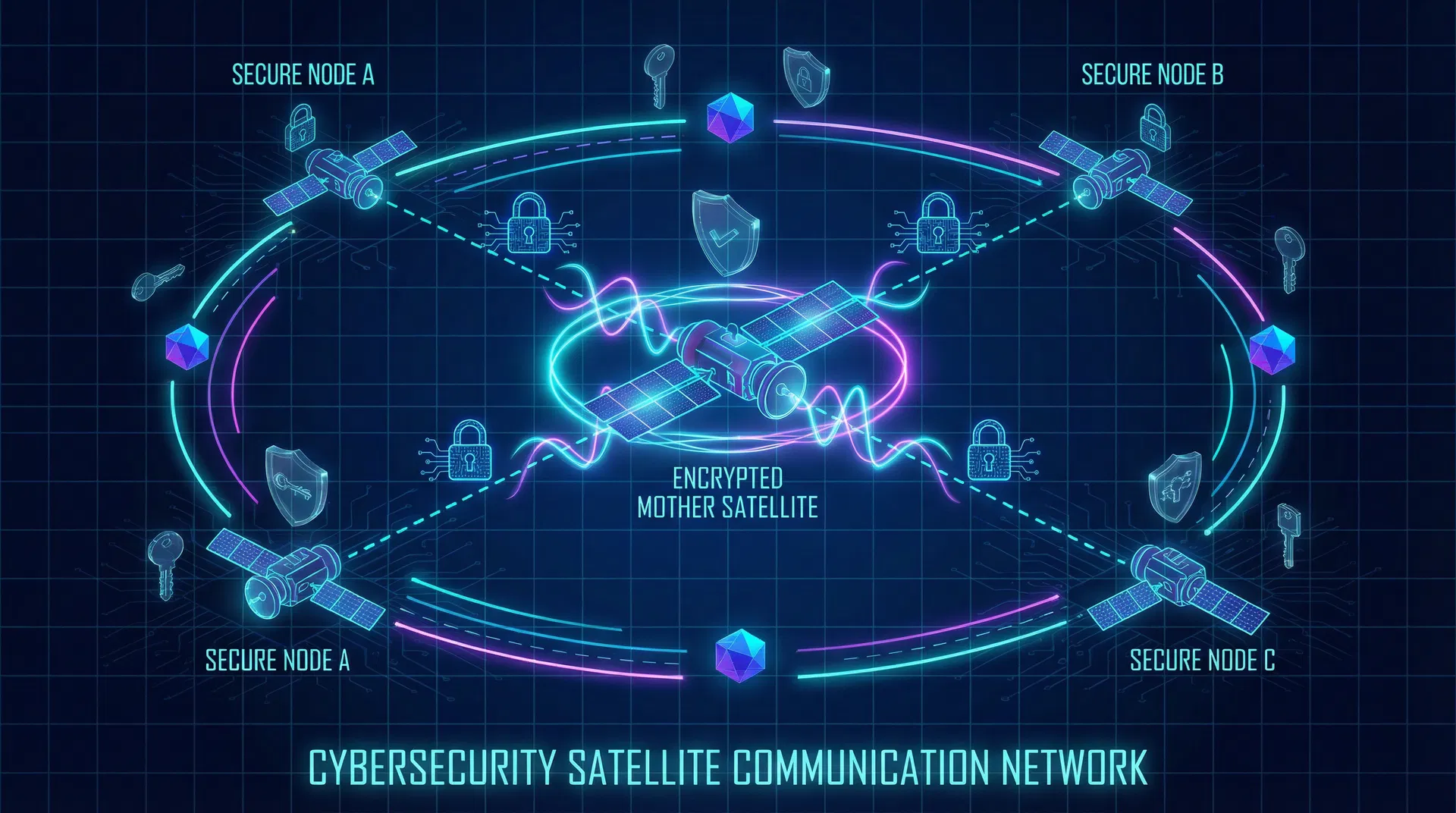

Encrypted Communication & Cooperative Control
High-security communication links based on dynamic group key distribution and frequency-hopping techniques ensure covert transmission of coordinates and commands within the satellite network.
Dynamic Group Key Distribution
Elliptic Curve Cryptography (ECC)-based protocols enable automatic key updates whenever satellites join or leave the network, maintaining cryptographic integrity.
Frequency-Hopping Spread Spectrum
Inter-satellite links employ frequency-hopping to enhance jamming resistance and prevent signal interception during coordinate and command transmission.
Quantum Key Distribution (Optional)
Integration of QKD technology provides information-theoretic security for ultra-sensitive mission-critical communications.
技术参数总览
| 系统模块 | 参数项 | 设定值 |
|---|---|---|
| 电磁弹射系统 | 发射塔高度 | 约30米 |
| 运载器重量 | 50kg | |
| 弹射加速度 | 10-20g | |
| 能量来源 | 超级电容器/飞轮 | |
| 空间交会对接 | 对接机制 | 电磁捕获+机械锁合 |
| 捕获范围 | 数米范围 | |
| 可重复性 | 可重复分离与对接 | |
| 加密通信 | 加密算法 | ECC-256/AES-256 |
| 调制方式 | 跳频扩频 | |
| 导航方式 | 差分GNSS+视觉 |
Technical Specifications
| System Module | Parameter | Specification |
|---|---|---|
| Electromagnetic Launch | Tower Height | ~30 meters |
| Vehicle Mass | 50 kg | |
| Acceleration | 10–20g | |
| Energy Storage | Supercapacitor/Flywheel | |
| In-Orbit Docking | Mechanism | EM capture + mechanical latch |
| Capture Range | Several meters | |
| Repeatability | Reusable docking/separation | |
| Encrypted Communication | Encryption | ECC-256 / AES-256 |
| Modulation | Frequency-hopping spread spectrum | |
| Navigation | Differential GNSS + Visual |
Ready to Explore Advanced Satellite Technology?
Contact us to learn more about the electromagnetic launch and satellite mother-ship constellation system.
联系我们
Contact Us
技术深度解析
详细的物理原理、电路设计和工程实现方案。
Technical Deep Dive
Detailed physics principles, circuit design, and engineering implementation.
核心物理公式
1. 加速度公式
a = v² / 2s
2. 动能公式
KE = ½ mv²
3. 轨道推力公式
F = ½ LI'²
4. 水平射程公式
R = v² sin(2θ) / g
5. 最大高度公式
h_max = (v sin θ)² / 2g
6. Sutton-Graves热流公式
q = 1.83 × 10⁻⁴ √(ρ/R_n) V³ (W/m²)
7. 总速度增量公式
Δv_总 = v_EM + v_火箭
Core Physics Formulas
1. Acceleration Formula
a = v² / 2s
2. Kinetic Energy Formula
KE = ½ mv²
3. Rail Thrust Formula
F = ½ LI'²
4. Horizontal Range Formula
R = v² sin(2θ) / g
5. Maximum Height Formula
h_max = (v sin θ)² / 2g
6. Sutton-Graves Heat Flow
q = 1.83 × 10⁻⁴ √(ρ/R_n) V³ (W/m²)
7. Total Velocity Increment
Δv_total = v_EM + v_rocket
电磁轨道炮原理
通过电磁洛伦兹力将弹丸加速到超高速度。电流通过电枢产生磁场与导轨磁场相互作用，产生推进力。
Maglev磁悬浮系统
超导磁体产生的磁场与悬浮线圈相互作用，实现无接触悬浮和推进。系统包含悬浮线圈、超导磁体、吸引力和排斥力的平衡机制。
真空管道超高速运输
在真空或低压环境中运行，减少空气阻力。使用电磁导轨和SCM（Superconducting Magnetic）系统实现超高速加速。
电磁轨道炮电路原理
包含电容器组、Rogowski线圈、导轨和固体电枢。通过精确控制电流脉冲实现高速弹丸加速。
PWM电磁铁控制电路
脉宽调制（PWM）控制电磁铁的电流，实现精确的磁力调控。包含IC芯片、电容、晶体管和监测电路。
脉冲功率系统原理图
2.4 MJ脉冲功率系统的完整电路架构，包含电容器充电单元、晶闸管驱动电路、继电器盒和分段控制器。
卫星设计与热防护
包含卫星外形与内部结构设计、轨道仿真、热防护材料（PICA碳酚醛、碳酚醛、C/SiC陶瓷基复合材料、BNNT氮化硼纳米管织物）。
